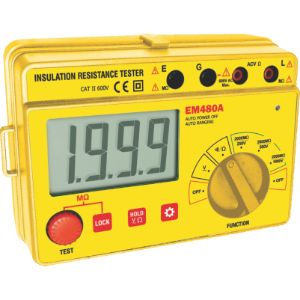

DIGITAL INSULATION RESISTANCE TESTER

R3,076.11 (incl. VAT)

SKU: O0002013 Categories: , ,

Description

  • Supplier Code: EM480A
  • For insulation resistance test, you can change the test voltage among 250V, 500V and 1000V
  • Used for testing transformers, motors, cables, switches and electrical appliances
  • Data hold mode
  • Test voltage can be changed using the rotary switch
  • LED used as normal working indicator under high voltage conditions
  • Auto power off
  • Ability to withstand high load
  • Protection circuit provided, to be able to avoid damage caused by the discharge voltage of the tested load
  • Powered by batteries Leads:
  • Test lead with big test clip
  • High voltage test lead
  • Normal test lead (for insulation resistance test, user can connect an alligator clip to the test lead’s probe for easy use if necessary)

Additional information

Weight 0.485 kg
Dimensions 1 × 1 × 1 cm
Rated test voltage

250V / 500V / 1000V

Voltage AC

700V

Output voltage rated test

Voltage

(1+/-10 %) Insulation resistance

Resistance

200 Ω

Continuity

Approx. 2.8V

Test range

0.25 ~ 2000 Ω

Nominal current

1mA

Minimum resolution

0.001 M Ω

Buzzer

When resistance <1m Ω

Power Supply

9V DC (1.5V “AA” battery x 6)
