Description

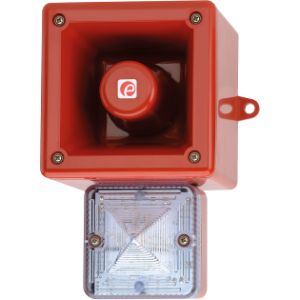

- AL105 12VDC 500M RED
- The E2S range of sounder and combination units have been designed to perform at maximum capacity for as long as required.
- The sound output can be decreased by means of a volume control.
- The standard colour is red, but these units are also available in grey and white.
- Voltage: 10-30Vdc | 24Vac | 110 Vac | 220 Vac
- Duty Cycle: Continuous
- Sound Output: 112 dB(A) at 1m
- Sound Frequency: 340/2400Hz (depends on tone selection)
- Sound Select: 32 user selectable tones with a 3 stage alarm option
- App. Range: 500m in still air on an open field
- Current Consuption: 25mA | 40mA | 20mA | 15mA
- Current Consumption (combo): 12V – 525mA | 275mA | 120mA | 65mA
- Lens Colour: Red | Amber | Green | Blue
- IP Rating: Sounder – IP66 | Combo – IP66
- Weight (kg): Sounder – 1 | Combo – 1.2
- Packing dimensions (mm): Sounder – Sounder – 150 x 150 x 140| Combo – 150 x 220 x 150
