Description

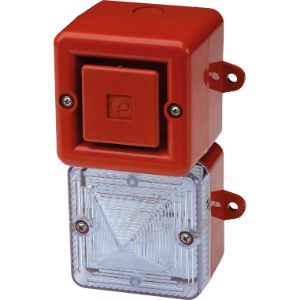

- AL100 220VAC 300M AMBER
- The E2S range of sounder and combination units have been designed to perform at maximum capacity for as long as
required. - The sound output can be decreased by means of a volume control.
- The standard colour is red, but these units are also available in grey.
- Voltage: 10-30Vdc | 24Vac | 110 Vac | 220 Vac
- Duty Cycle: Continuous
- Sound Output: 104 dB(A) at 1m
- Sound Frequency: 340/2400Hz (depends on tone selection)
- Sound Select: 32 user selectable tones with a 3 stage alarm option
- App. Range: 300m in still air on an open field
- Current Consuption: 25mA | 40mA | 13mA | 13mA
- Current Consumption (combo): 12V – 525mA | 405mA | 120mA | 65mA
- Lens Colour: Red | Amber | Green | Blue
- IP Rating: Sounder – IP66 | Combo – IP66
- Weight (g): Sounder – 370 | Combo – 570
- Packing dimensions (mm): Sounder – 110 x 110 x 90 | Combo – 190 x 110 x 190
